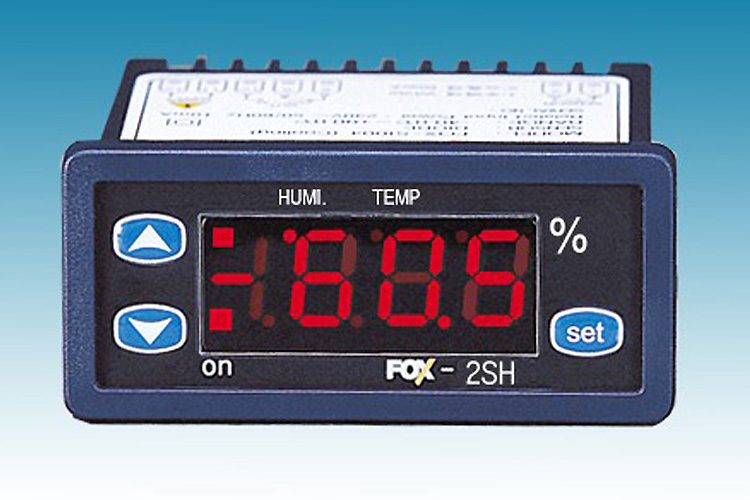

Conotec CNT-2SH temperature and humidity sensor is also a device used to measure temperature changes of the quantities to be measured. High quality products under the Conotec brand specialize in providing industrial automation solutions, manufacturing product lines in the manufacturing, application engineering, and electrical and electronics industries such as sensors, controllers, and temperature measurement. degrees, measuring equipment...
1. What is Conotec CNT-2SH temperature and humidity sensor?
Conotec CNT-2SH temperature and humidity sensor is a device used to measure temperature changes of the quantities to be measured. Thermal sensors are specifically designed for the food, pharmaceutical, chemical, automotive, marine and plastic materials industries, as well as all industries requiring high precision and reliability. in measurements.
The temperature sensor is composed of two different metal wires attached to one end called the hot end (measuring end) and the cold end (standard end).
- Connecting wire. Connection of the sensor unit can be made using 2, 3 or 4 wires; Wire material depends on the conditions in which the probe is used.
- Insulator: prevents short circuits and insulates the connecting wires from the protective cover.
- Filler: fills any gaps to protect the sensor from vibrations.
- Protective cover: protects sensor components and connecting wires. Since it comes into direct contact with the process, it is important that it is made of the right material and has the right dimensions.
- Connector: contains a circuit board made of insulating material that allows the electrical connection of the resistor. Depending on the construction, explosion-proof housing may be used. A 4-20 mA converter can be installed in place of the terminal board.
- Sensor part: is the most important part that can withstand heat, a poor quality sensor part will jeopardize the correct operation of the entire sensor device. Once connected to the connector, it is placed inside the protective case. Sensing elements with double coils are available for different levels of accuracy.

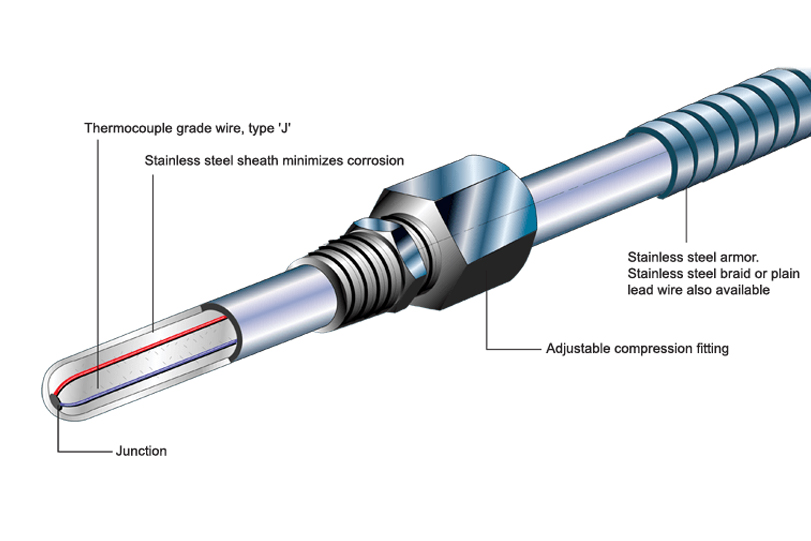

Internal structure of Conotec temperature sensor
Temperature measurements made with a thermocouple are much more accurate and reliable than measurements made with other types of thermocouples or thermometers.
2. Main characteristics of Conotec CNT-2SH humidity and temperature sensor.
Conotec CNT-2SH humidity and temperature sensor is a device used to sense the transformation of physical quantities that do not have electrical properties (temperature, pressure, flow...) that need to be measured into quantities (usually electrical).
electrolytes) can be measured and processed.
- High precision
- Flexible, can be assembled easily
- Compatible with the environment
- Fast response speed
Specifications:
- External dimensions (mm): 77 (W) X 35 (H) X 77 (D)
- Operating range: 0.0 ~ 100.0% RH
- Input sensor: DS-SH-Series
- Display accuracy: ± 1% rdg ± 1 digit
- Output: 2 on (1a 1a 230VAC 2A) / 1R: Humi, 2R: Humi 2 or Time output
- Control method: ON/OFF
- Cutting size (mm): 71 (W) X 29 (H)
- Power supply: 230VAC 50 / 60Hz, 10 VAC 50 / 60Hz 12 or 24 V AC / DC ± 10%)
- Programming: Setup/up/down keys
- Ambient temperature: 0 ~ 55 ℃ (32 ~ 131), 35 ~ 80% RH
- Weight: 400g
