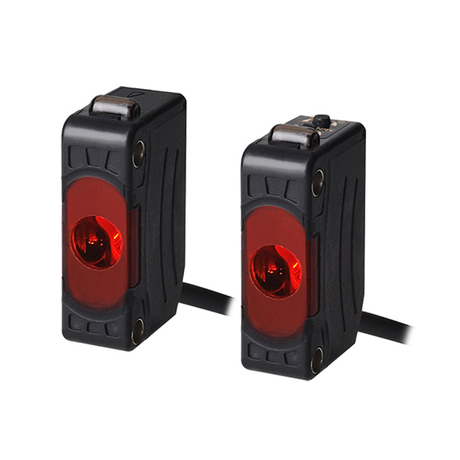

Autonics BJ10M-TDT photoelectric sensor is also known as an optical sensor used to detect many different types of objects, detect and measure distance or detect the speed of objects,... High quality product of the Autonics brand, Autonics is famous in Korea for providing industrial automation solutions, manufacturing product lines in the manufacturing, application engineering, and electrical - electronics industries such as sensors, controllers, temperature measurement, measuring equipment…..
1. Autonics BJ10M-TDT photoelectric sensor function
Autonics BJ10M-TDT photoelectric sensor has the following main functions:
- Reflector type, common transceiver and independent transceiver (broken beam), all available in PZ-G series. These sensors have a blast capacity of more than 130 feet and the sensitivity to detect even obvious targets.
- Simple trimpot calibration and light-on/dark-on capabilities built into each PZ-G. Additional features such as an integrated alignment indicator make the PZ-G series easy to use.
- Features a quick disconnect option, which saves significant time during installation or replacement.
- IP65 protection structure (IEC Standard)
- Light ON / Dark ON selectable (Except BJG30-DDT)
- Built-in VR sensitivity adjustment (Except BJG30-DDT)
- Output short circuit protection circuit, reverse polarity connection
- Automatic function prevents mutual interference
- Improved anti-interference and minimizes the effects of changing light disturbances
Specifications:
- Detection type: Transceiver type
- Detection distance: 10m
- Detection distance: Opaque material min. Ø12mm
- Light source: red LED (660nm)
- Response time: Max. 1ms
- Power supply: 12-24VDC ±10% (PP wave: max. 10%)
- Current consumption: Transmitter/Receiver: Max. 20mA
- Sensitivity adjustment: Sensitivity adjuster
- Operating mode: Light ON/Dark ON (set by switch)
- Control output: NPN open collector circuit
- Connection type: Cable type(Ø3.5, 2m)
- Sunlight: Max. 11,000lx,
- Fluorescent lamp: Max. 3,000lx (receive light)
- Ambient temperature: -25 to 55℃, storage: -40 to 70℃
- Protection structure: IP65
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH
- Weight: Approx. 115g
2. Design of Autonics BJ10M-TDT photoelectric sensor
Autonics BJ10M-TDT photoelectric sensor, English name Photoelectric sensors, emits light beams (visible or infrared)
- The casing is made from ABS plastic, allowing the device to be installed in environments containing metal cutting oils and other lubricants.
- The screw mounting hole is designed with a nut to minimize product deformation.
- LED installation allows the device to be installed in environments containing metal cutting oils and other lubricants.
- The cable is oil and heat resistant, minimizing contact corrosion.
The photoelectric sensor is designed in a flat form with: separate transceiver, common transceiver, mirror reflection with large detection distance, power supply with wide voltage range, stable working ability, high reliability. , fast response time.
How to install optical sensor:
- Turn off the power and connect the power cord according to the diagram included in the user manual. Note: The sensor has 3 wires: Power source wire, light wire and power cold wire connected to the light.
- Apply power and check the sensor's functionality
- Use a thick paper box to cover the sensor eye to create dark light. If the box is closed, the light turns on. Take out the box, the light turns off, meaning the system is working normally.
Note:
- Install the sensor in the correct direction.
- Do not install the sensor under an electric light source. For locations with high-pressure lights, the sensor should be installed above the light.
- The sensor must be placed in an environment with natural light.
- Do not place obstacles in front of the sensor that obscure natural light, to avoid the sensor misidentifying light.
- Consider using sensors for factories, industrial parks... that require highly accurate light on and off times.
