Autonics CR30-15AC capacitive proximity sensor is also known as a capacitive sensor used to detect objects without touching them. This is one of the high-quality product lines from the Autonics brand, a famous brand in Korea specializing in providing industrial automation solutions, manufacturing product lines in the manufacturing and engineering industries. electrical and electronic applications such as sensors, controllers, temperature gauges, measuring equipment...
1. What is the structure of the Autonics CR30-15AC capacitive proximity sensor?
Autonics CR30-15AC capacitive proximity sensor belongs to the CR Series capacitive sensor used to detect mm-sized close objects for monitoring and control purposes.
Capacitive sensors are composed of four main parts:
- Sensor (insulated terminals).
- Oscillating circuit.
- Detector (sensing)
- Output circuit.
Autonics capacitive sensors have a part that changes the capacitance C of the electrode plates. Operation is based on evaluating the change in capacitance of a capacitor. Any object that passes within the sensitive area of a capacitive sensor increases the capacitance of the capacitor. This change in capacitance depends on the distance, size and dielectric constant of the material. Inside there is a circuit that uses a DC source to create oscillation for the current sensor. The current sensor will output a current proportional to the distance between the two pole plates.
Conventional capacitive sensors have a measuring range from 2mm to less than 50mm. 2mm Capacitive Sensor, 4mm Capacitive Sensor, 8mm Capacitive Sensor, 12mm Capacitive Sensor, 16mm Capacitive Sensor, 25mm Capacitive Sensor, ON-OFF Capacitive Sensor,
Capacitive sensors will have common outputs such as PNP/NPN/NO/NC...
Capacitive proximity sensors with and without shields
Capacitive sensors with shields will have a shorter measuring range than sensors without shields, but the accuracy will be higher due to less interference from the surrounding environment and the price will also be higher. Depending on the intended use, we choose the appropriate shielded capacitive sensor and unshielded capacitive sensor.

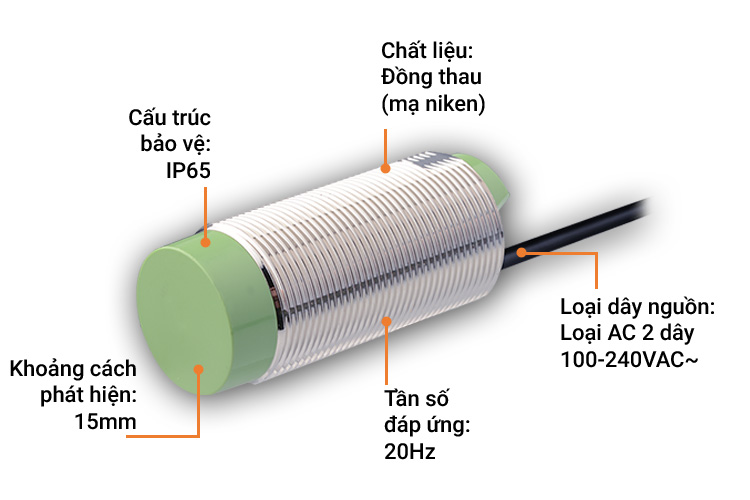

Detailed structure of Autonics CR30-15AC
2. Advantages of Autonics CR30-15AC capacitive proximity sensor
Autonics CR30-15AC capacitive proximity sensor is an AO sensor with integrated surge protection circuit with high longevity and reliability. Easily adjust the detection distance with sensitivity adjuster, level control and position control. The operating status can be checked using the Red LED indicator light.
In addition, this AO type capacitive sensor also has the ability to:
- Detect objects without contact or impact on the object
- Stable operation, good vibration and shock resistance
- Fast response speed, long life (compared to limit switch)
- The small sensor head can be installed in many places.
- Can be used in harsh environments.
Autonics CR30-15AC capacitive proximity sensor is a high-end device from Autonics used in industrial production and automation.
Specifications:
- Cord and power type: 2-wire AC type 100-240VAC~
- Detection edge diameter: M30
- Detection distance: 15mm
- Standard detection distance: 50×50×1mm(iron)
- Frequency response: 20Hz
- Current parameters: Leakage current: Max. 2.2mA
- Control output: Normally Closed
- Material: Brass (nickel plated)
- Protection structure: IP65
- Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Latency: Max. 20% at detection distance
- Weight: Approx. 237g
