Autonics PR18-5AO cylindrical convex magnetic sensor is also known as a magnetic sensor used to detect objects without touching. This is one of the high-quality product lines from the Autonics brand, a famous brand in Korea specializing in providing industrial automation solutions, manufacturing product lines in the manufacturing and engineering industries. electrical and electronic applications such as sensors, controllers, temperature gauges, measuring equipment...
1. What are the outstanding features of the Autonics PR18-5AO cylindrical head magnetic sensor?
The Autonics PR18-5AO cylindrical head magnetic sensor is known as a cylindrical magnetic product used in automatic systems. The most commonly used flat proximity sensor is the magnetic induction type, which emits an electromagnetic field to detect a metal object passing near its surface.
PFI flat magnetic sensors are a product line that incorporates many superior features. The product is widely used to replace micro switches and limit switches. With improved anti-interference by a separately designed IC (3-wire DC type), in addition, it is also integrated with a reverse power polarity protection circuit and an overvoltage (DC) protection circuit to enhance maximum safety. for users.
Flat magnetic sensors have long life and high reliability for simple operations. Shorten maintenance time when replacing equipment. Users can check the operating status themselves by the Red LED indicator. The product is waterproof protected according to IP67 standards, helping the product's working environment become more diverse while also improving the durability of the product so that users can use it with peace of mind.
Specifications:
- Cord and power type: 2-wire AC type 100-240VAC~
- Detection edge diameter: M18
- Detection distance: 5mm
- Installation: Shield (convex)
- Standard detection distance: 18×18×1mm(iron)
- Frequency response: 20Hz
- Current parameters: Leakage current: Max. 2.5mA
- Control output: Normally Open
- Material: Brass (nickel plated)
- Cable Standard/Material: Standard cable
- Protection structure: IP67
- Body length: Standard type
- Ambient temperature: -25 to 70℃, storage: -30 to 80℃
- Ambient humidity: 35 to 95% RH, storage: 35 to 95% RH
- Latency: Max. 10% detection distance
- Residual voltage: Max. 10V
- Insulation type: Double insulation or reinforced insulation (marking: , dielectric strength between measurement input part and power part: 1kV)
- Weight: Approx. 130g

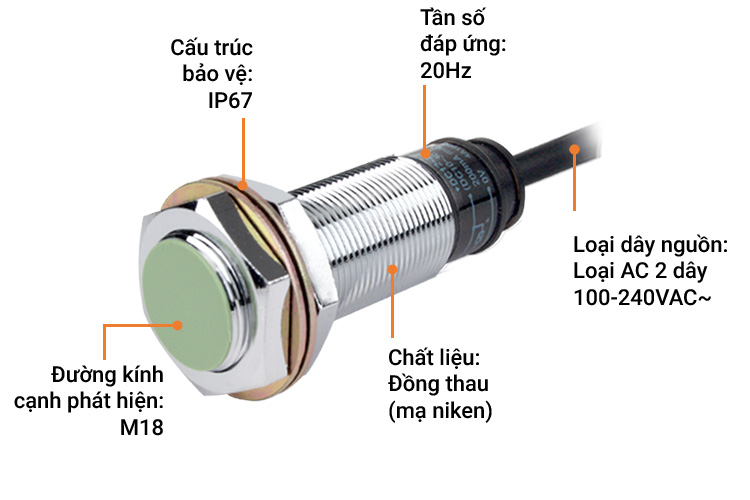

Detailed structure of Autonics PR18-5AO
2. Structure of the convex head sensor.
The Autonics PR18-5AO cylindrical head sensor is an electronic device that senses physical and chemical states or processes in the environment that need to be investigated and converts them into electrical signals to collect information about the state. or that process.
Convex sensors help transmit information to be processed to extract qualitative or quantitative parameters of the environment, serving the needs of information transmission and processing, or in controlling other processes.
Composed of electrical circuit elements forming a complete system to emit signals regulated at common voltage and current levels suitable for controllers: microprocessor parts; sensi sensor, rotation transformer, gyroscope, speed sensor.
- The microprocessor part includes an electrical circuit isolation system; Used to convert signals, such as amplifier circuits, rectifier circuits, and stabilizer circuits.
- The sensi sensor is used to remotely transmit information about shaft rotation angle
- Rotary transformer is used to convert voltage signals
- The gyroscope is used to measure and determine the degree of angular deviation; Helps stabilize the signal transmission system
- Finally, the speed sensor is affected by the light source
