Specifications
Alantek fire-resistant cable 301-FRS025-E01P-3SG5 is used in factories to transmit data to machines, transmit control signals, install sound systems, wire fire alarm systems in buildings, industrial parks, etc.

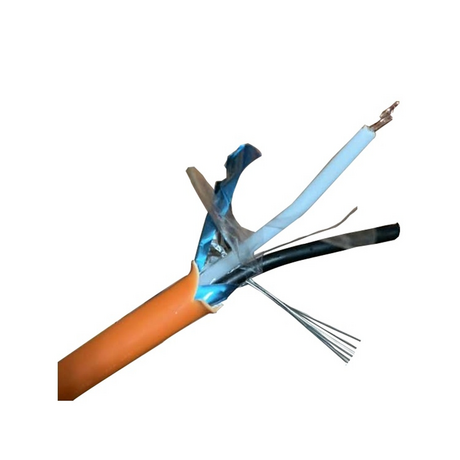

Cable 301-FRS025-E01P-3SG5 is made of many layers with added fire-resistant components. The layers that make up the 1Px2.5mm fireproof cable include:
- The wire consists of 2 cores, made of pure copper material with good heat and electrical conductivity, but the price is cheaper than other materials with equivalent electrical conductivity. Each copper core has a cross-section of 2.5mm, surrounded by an insulating layer made of Silicon.
- Insulation with heat-resistant Silicon has the characteristics of being flexible, easy to process, and has good waterproofing ability. With high-quality silicon material, it will not deform when exposed to heat, and the silicon sheath also has very good insulation ability. When the copper core operates continuously, some cases may occur that cause the temperature to increase, at this time the silicon sheath will limit the possibility of melting or catching fire.
- GT glass fabric is used for insulation, as a cushion to help prevent fire when a fire occurs. The advantage of this glass fabric layer is its ability to withstand corrosive environments, so it can meet harsh usage environments.
- The anti-interference layer is made of aluminum film, this aluminum network layer has high anti-corrosion and heat-resistant properties, helping the signal transmission line to be more stable and the signal to be transmitted further.
- The noise-emitting wire is made of tin-plated copper wire, which contributes to increasing the strength of the signal transmission line and also has a grounding effect.
- The LSZH outer shell helps limit fire, has little smoke and is halogen-free, making it safe for users.
Alantek fire-resistant cable 301-FRS025-E01P-3SG5Technical parameters:
- Fire-resistant standard: LSZH
- Voltage: 300V/500V
- Dielectric strength between pairs: 1.5 KV/5min
- Temperature range: -20-90 °C
- Minimum bending radius: 10x0.D
- Standard: BS 5308 , IEC 60331
- Test voltage: 2000 V
- Number of pairs: 1 pair
- Overall diameter: 8.8 mm
- Cross section of conductor: 1x2x2.5 mm²
- Thickness of insulation material: 0.6 mm
Alantek fire-resistant cable 301-FRS025-E01P-3SG5 is used in factories to transmit data to machines, transmit control signals, install sound systems, wire fire alarm systems in buildings, industrial parks, etc.
Cable 301-FRS025-E01P-3SG5 is made of many layers with added fire-resistant components. The layers that make up the 1Px2.5mm fireproof cable include:
- The wire consists of 2 cores, made of pure copper material with good heat and electrical conductivity, but the price is cheaper than other materials with equivalent electrical conductivity. Each copper core has a cross-section of 2.5mm, surrounded by an insulating layer made of Silicon.
- Insulation with heat-resistant Silicon has the characteristics of being flexible, easy to process, and has good waterproofing ability. With high-quality silicon material, it will not deform when exposed to heat, and the silicon sheath also has very good insulation ability. When the copper core operates continuously, some cases may occur that cause the temperature to increase, at this time the silicon sheath will limit the possibility of melting or catching fire.
- GT glass fabric is used for insulation, as a cushion to help prevent fire when a fire occurs. The advantage of this glass fabric layer is its ability to withstand corrosive environments, so it can meet harsh usage environments.
- The anti-interference layer is made of aluminum film, this aluminum network layer has high anti-corrosion and heat-resistant properties, helping the signal transmission line to be more stable and the signal to be transmitted further.
- The noise-emitting wire is made of tin-plated copper wire, which contributes to increasing the strength of the signal transmission line and also has a grounding effect.
- The LSZH outer shell helps limit fire, has little smoke and is halogen-free, making it safe for users.
Alantek fire-resistant cable 301-FRS025-E01P-3SG5Technical parameters:
- Fire-resistant standard: LSZH
- Voltage: 300V/500V
- Dielectric strength between pairs: 1.5 KV/5min
- Temperature range: -20-90 °C
- Minimum bending radius: 10x0.D
- Standard: BS 5308 , IEC 60331
- Test voltage: 2000 V
- Number of pairs: 1 pair
- Overall diameter: 8.8 mm
- Cross section of conductor: 1x2x2.5 mm²
- Thickness of insulation material: 0.6 mm
