Schneider Contactor A9C20731 25A 1NO 1P 220V is usually made from phenolic synthetic resin with high insulation and heat resistance properties. Schneider Contactor has electrical safety and durability that meet international IEC947 standards. Often used in factories, enterprises, and industrial production zones.
Contactor Schneider A9C20731 is a specialized device for controlling and monitoring electrical circuits in a variety of industrial, commercial and residential buildings. Acti9 iCT contactor uses a flexible interface that allows you to easily control electricity between the control device and the electrical circuit. With Type 2 insulation: continuous protection and safety, In addition, the Acti 9 Contactor iCT series contactor is integrated with status indicator lights, noise filtering, dual control and time delay.

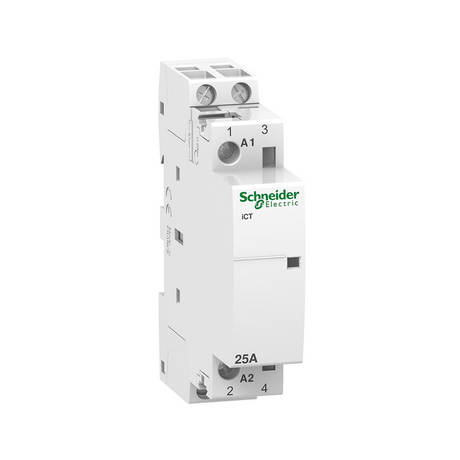

Contactor Schneider A9C20731 25A 1NO 1P 220V
Technical parameters:
- Line: Acti 9 iCT
- Number of poles: 1 phase
- Contact current: 25 A
- Voltage: 220-240 VAC
- Frequency: 50 Hz
- Rated insulation voltage: 500 VAC
- Auxiliary contact: 1 NO
- Rated impulse withstand voltage: 2.5 kV
- Protection level: IP20, IP40
- Dimensions: 81x68x18 mm
- Durability: 100,000 electrical operations
- Operating temperature: -5-60 degrees C
- Storage temperature: -40-70 degrees C
Schneider Contactor A9C20731 25A 1NO 1P 220V is usually made from phenolic synthetic resin with high insulation and heat resistance properties. Schneider Contactor has electrical safety and durability that meet international IEC947 standards. Often used in factories, enterprises, and industrial production zones.
Contactor Schneider A9C20731 is a specialized device for controlling and monitoring electrical circuits in a variety of industrial, commercial and residential buildings. Acti9 iCT contactor uses a flexible interface that allows you to easily control electricity between the control device and the electrical circuit. With Type 2 insulation: continuous protection and safety, In addition, the Acti 9 Contactor iCT series contactor is integrated with status indicator lights, noise filtering, dual control and time delay.
Contactor Schneider A9C20731 25A 1NO 1P 220V
Technical parameters:
- Line: Acti 9 iCT
- Number of poles: 1 phase
- Contact current: 25 A
- Voltage: 220-240 VAC
- Frequency: 50 Hz
- Rated insulation voltage: 500 VAC
- Auxiliary contact: 1 NO
- Rated impulse withstand voltage: 2.5 kV
- Protection level: IP20, IP40
- Dimensions: 81x68x18 mm
- Durability: 100,000 electrical operations
- Operating temperature: -5-60 degrees C
- Storage temperature: -40-70 degrees C
Specifications
Specifications
Product description
Contactor Schneider A9C20731 25A 1NO 1P 220V
Contactor Schneider A9C20731 25A 1NO 1P 220V
Schneider Contactor A9C20731 25A 1NO 1P 220V is usually made from phenolic synthetic resin with high insulation and heat resistance properties. Schneider Contactor has electrical safety and durability that meet international IEC947 standards. Often used in factories, enterprises, and industrial production zones.
Contactor Schneider A9C20731 is a specialized device for controlling and monitoring electrical circuits in a variety of industrial, commercial and residential buildings. Acti9 iCT contactor uses a flexible interface that allows you to easily control electricity between the control device and the electrical circuit. With Type 2 insulation: continuous protection and safety, In addition, the Acti 9 Contactor iCT series contactor is integrated with status indicator lights, noise filtering, dual control and time delay.
Contactor Schneider A9C20731 25A 1NO 1P 220V
Technical parameters:
- Line: Acti 9 iCT
- Number of poles: 1 phase
- Contact current: 25 A
- Voltage: 220-240 VAC
- Frequency: 50 Hz
- Rated insulation voltage: 500 VAC
- Auxiliary contact: 1 NO
- Rated impulse withstand voltage: 2.5 kV
- Protection level: IP20, IP40
- Dimensions: 81x68x18 mm
- Durability: 100,000 electrical operations
- Operating temperature: -5-60 degrees C
- Storage temperature: -40-70 degrees C
