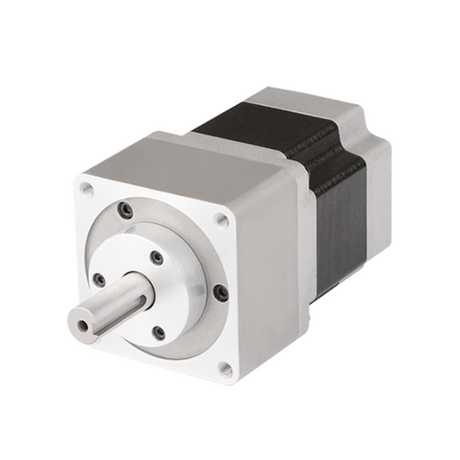

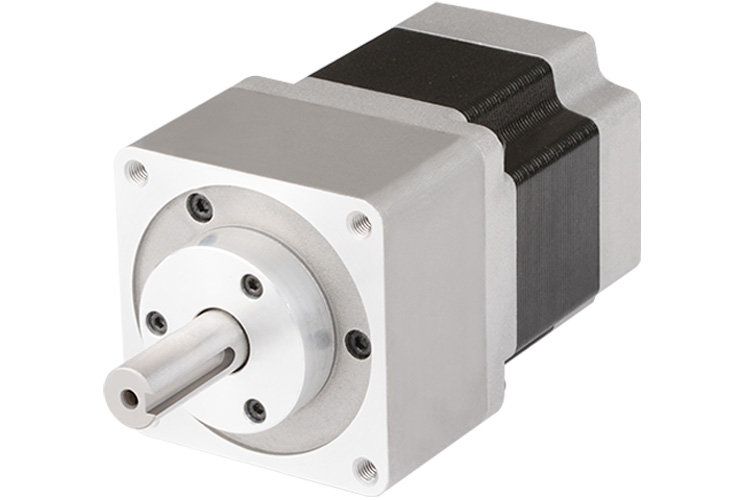

The Autonics A35K-M566-G5 stepper motor is a device that converts control signals in the form of electrical pulses... This is one of the quality product lines from the Autonics brand, a famous brand specializing in developing and manufactures a wide range of automation products marketed worldwide. Autonics core products include various sensors, controllers, motion devices, measuring devices, laser marking systems, connection devices.....
The Autonics A35K-M566-G5 stepper motor is a synchronous motor used to transforms control signals in the form of successive discrete electrical pulses into rotational angular movements or rotor movements capable of fixing the rotor in required positions.
Stepper motors can be considered a combination of two types of motors: contactless DC motors and small-capacity geared synchronous motors.
Stepper motors do not rotate according to a normal mechanism, they rotate in steps so they have very high precision in terms of control. They work thanks to electronic switches that inject control signals into the stator in a certain order and frequency. The total number of rotation angles of the rotor corresponds to the number of switching times, as well as the rotation direction and rotation speed of the rotor depend on the switching order and switching frequency.
About application: In digital motion control, the stepper motor is a particularly effective actuator because it can faithfully execute commands given in digital form.
Stepper motors are widely used in the Automation industry, they are used in devices that require precise control. For example: Robot control, focus control in optical systems, positioning control in monitoring systems, target acquisition and tracking control in observation devices, programming control in home appliances. cutting and controlling the direction and direction steering mechanisms in aircraft...
Specifications:
- Basic step angle (FULL step/HALF step): 0.144º/0.072º
- Twisted current impedance: 1.1Ω
- Rated current: 1.4A/Phase
- Motor length: 94.5mm
- Shaft type: Single shaft
- Gear ratio: 1:5
- Wire connection: Pentagon
- Protection structure: IP30
- Allowed speed range: 0 to 360rpm
- Absolute position error: ±20'(0.33˚)
- Movement loss: ±20'(0.33˚)
- Weight: Approx. 1.57kg
