KIM TIN KT-6013 3.2 3.2mm iron welding rod box is a welding rod belonging to the high Titanium group, Can weld well with many types of welding equipment, suitable for welding door frame structures, factories, rolled steel... has average load.
1. Characteristics of KIM TIN KT-6013 3.2mm soldering iron box 3.2
- Weld joints are bright, smooth, easily peel off slag, light in electricity, low in smoke and spatter.
- Can be welded in any position.
- Suitable for welding door frame structures, factories, and rolled steel.
KIM TIN KT-6013 3.2 3.2mm iron soldering iron box helps users to weld in all different welding positions: flat welding, horizontal welding, ceiling welding,... besides, the welding rod also has arc priming sensitivity. Well, the maximum stop time for re-priming is no less than 60 seconds.

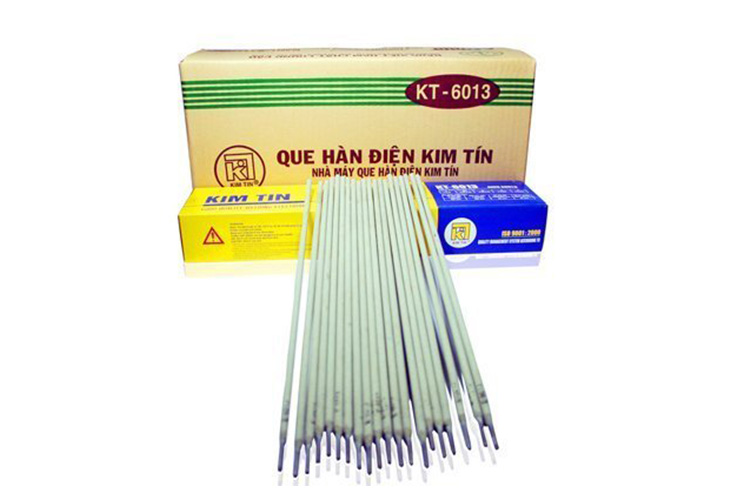

Box of 3.2mm soldering iron KIM TIN KT-6013 3.2
2. Instructions for use
Step 1: Prepare all labor safety factors before welding. Stable welding power source
Step 2: When the welding rod is damp, the welding rod is susceptible to smoke, splashes and instability, the weld joint is porous, it needs to be dried at 80°C - 100°C for 40 - 60 minutes before use.
Step 3: Remove oil stains and dirt from the surface of the welded object.
Make sure the weld seam gaps and beveled the weld edges according to regulations to achieve a strong weld joint.
Choose the welding current according to the instructions to get a deep penetration weld with high working ability.
Specifications
- KT-6013
- TCVN 6259 - 6:1997
- AWS E6013
- JIS D4303
- Weld mechanical properties:
- Durability limit (MPa): 490
- Liquid limit (MPa): 370
- Elongation (%): 24
- Impact toughness (J): 90
- Material level certified by registry: KMW2
- Welding electrode size and current used (AC & DC):
- Diameter (mm): 3.2
- Length (mm) 350
- Welding current equal to (A): 90-140
- Ceiling and vertical welding current (A): 80-130
KIM TIN KT-6013 3.2 3.2mm iron soldering iron has a compact design, providing beautiful welds.
3. Pay attention to safety when using soldering iron
Equip yourself with protective clothing, hats, gloves, and protective shoes when working
Welding source: It is necessary to prepare a stable power source for welding to avoid instability, sudden interruptions... affecting work progress, weld quality and minimizing the risk of harm to anyone that may occur. go out.
The soldering iron needs to be dry and not moldy. If so, make sure they are dried or dried before use.
To ensure a beautiful weld and meet the required quality, in addition to the welding rod, you also need to make sure the surface of the object being welded is clear, clean, and free of impurities, rust or machine oil...
