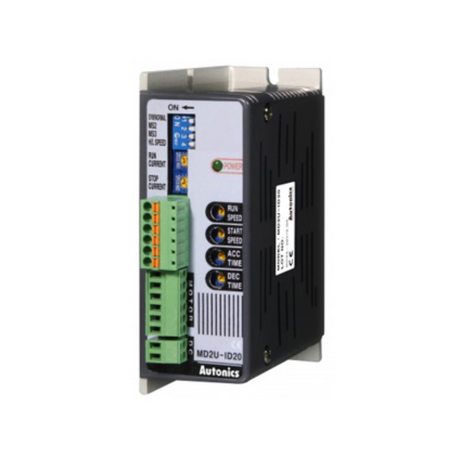

The Autonics MD2U-ID20 stepper motor driver circuit is often used in controllers. This is one of the high-quality product lines of the Autonics brand, a long-standing famous brand in Korea specializing in providing industrial automation solutions, manufacturing product lines in the manufacturing and engineering industries. electrical and electronic applications such as sensors, controllers, temperature gauges, measuring equipment... diverse in designs, rich in types to meet all needs.
Autonics MD2U-ID20 stepper motor driver circuit controls the pentagon with constant unipolar current
* Can recognize AC motor starting speed setting values such as stepper motors
* Fixed RUN Speed can be adjusted using external voltage and regulator
* ACC(acceleration) and DEC(deceleration) time can be adjusted
* The deceleration function can be adjusted by stopping current
* Can connect 2 motors in parallel to run synchronously
(But must be used on the same device with 1A phase current)
* Low speed and high torque can be realized without the need for transmission gears
* There are many applications of 2-phase stepper motors with cost savings and compact size
* Simple operation with Switch and regulator
* Low vibration thanks to microstepping operation
* Power supply: 20-35VDC
Specifications:
- Operation method: Unipolar constant current drive
- Applicable motor: 2-phase stepper motor
- Resolution: Smart type
- Power supply: 24-35VDC
- Maximum Run Current: 2A/phase
- Maximum current consumption: 3A
- Number of axes: 1 axis
- Ambient temperature: 0 to 50℃, storage: -10 to 60℃
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH
- Weight: Approx. 303g
The Autonics MD2U-ID20 stepper motor driver circuit is often used in controllers. This is one of the high-quality product lines of the Autonics brand, a long-standing famous brand in Korea specializing in providing industrial automation solutions, manufacturing product lines in the manufacturing and engineering industries. electrical and electronic applications such as sensors, controllers, temperature gauges, measuring equipment... diverse in designs, rich in types to meet all needs.
Autonics MD2U-ID20 stepper motor driver circuit controls the pentagon with constant unipolar current
* Can recognize AC motor starting speed setting values such as stepper motors
* Fixed RUN Speed can be adjusted using external voltage and regulator
* ACC(acceleration) and DEC(deceleration) time can be adjusted
* The deceleration function can be adjusted by stopping current
* Can connect 2 motors in parallel to run synchronously
(But must be used on the same device with 1A phase current)
* Low speed and high torque can be realized without the need for transmission gears
* There are many applications of 2-phase stepper motors with cost savings and compact size
* Simple operation with Switch and regulator
* Low vibration thanks to microstepping operation
* Power supply: 20-35VDC
Specifications:
- Operation method: Unipolar constant current drive
- Applicable motor: 2-phase stepper motor
- Resolution: Smart type
- Power supply: 24-35VDC
- Maximum Run Current: 2A/phase
- Maximum current consumption: 3A
- Number of axes: 1 axis
- Ambient temperature: 0 to 50℃, storage: -10 to 60℃
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH
- Weight: Approx. 303g

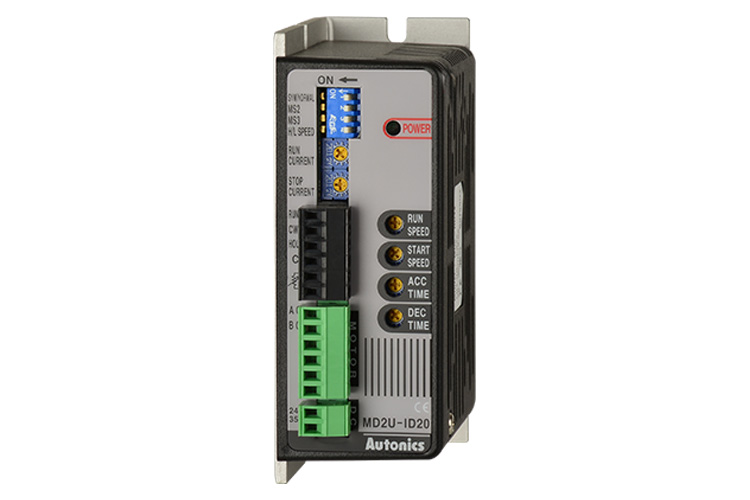

Autonics MD2U-ID20 stepper motor driver circuit
The Autonics MD2U-ID20 stepper motor driver circuit is often used in controllers. This is one of the high-quality product lines of the Autonics brand, a long-standing famous brand in Korea specializing in providing industrial automation solutions, manufacturing product lines in the manufacturing and engineering industries. electrical and electronic applications such as sensors, controllers, temperature gauges, measuring equipment... diverse in designs, rich in types to meet all needs.
Autonics MD2U-ID20 stepper motor driver circuit controls the pentagon with constant unipolar current
* Can recognize AC motor starting speed setting values such as stepper motors
* Fixed RUN Speed can be adjusted using external voltage and regulator
* ACC(acceleration) and DEC(deceleration) time can be adjusted
* The deceleration function can be adjusted by stopping current
* Can connect 2 motors in parallel to run synchronously
(But must be used on the same device with 1A phase current)
* Low speed and high torque can be realized without the need for transmission gears
* There are many applications of 2-phase stepper motors with cost savings and compact size
* Simple operation with Switch and regulator
* Low vibration thanks to microstepping operation
* Power supply: 20-35VDC
Specifications:
- Operation method: Unipolar constant current drive
- Applicable motor: 2-phase stepper motor
- Resolution: Smart type
- Power supply: 24-35VDC
- Maximum Run Current: 2A/phase
- Maximum current consumption: 3A
- Number of axes: 1 axis
- Ambient temperature: 0 to 50℃, storage: -10 to 60℃
- Ambient humidity: 35 to 85%RH, storage: 35 to 85%RH
- Weight: Approx. 303g
