The 0.48kW Tsurumi LB-480A centrifugal submersible pump is a single-phase portable submersible pump product line, specialized in pumping wastewater from gas pits and flooding caused by high tides and heavy rain.

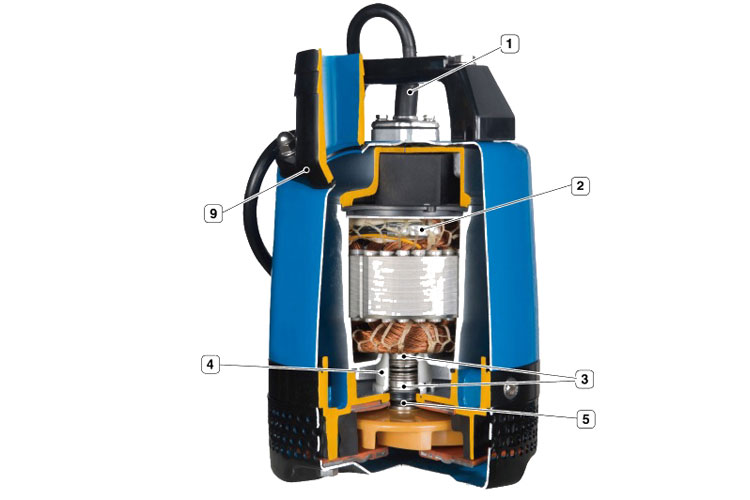

1. Structure and operating principle of the Tsurumi submersible pump
Anti-leakage cable: Protects the power cable from water seepage causing damage due to capillary action inside the pump. At the same time, it prevents humid air from entering the motor and limits condensation due to the temperature difference between the inside of the pump and the outside.
Motor protector:
- MTP (Below 0.48kW) detects excessive temperature, protecting the pump from overheating when running dry.
- CTP (From 0.55kW and above) directly cuts off the motor circuit when overheating or overcurrent occurs inside the motor.
Double mechanical seal with silicon carbide surface: Located in the ball chamber, where the lubrication environment is clean, non-corrosive and non-abrasive. This type of seal reduces the risk of damage due to dry heat and adhesion.
Oil lifter: Ensures the ability to lubricate and cool the mechanical seal even with only 1/3 of the normal oil level, helping to maintain stable sealing performance and prolong product life.
V-ring/Oil seal: Used as a shield, helping to protect the mechanical seal from abrasive foreign objects.
Flexible discharge nozzle: The discharge nozzle can be adjusted to tilt or vertically to suit different purposes, bringing maximum operating efficiency.
Centrifugal submersible pump operates according to the principle: When the pump motor is running, the pump self-primes and then the pumped fluid is pushed out of the impeller by centrifugal force then pushed from bottom to top along the pump pipe to the outside.

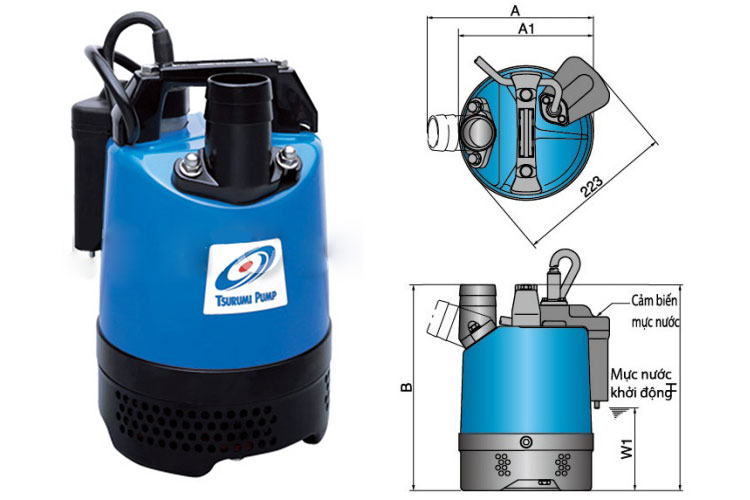

Tsurumi LB-480A
2. Features of the Tsurumi LB-480A 0.48kW centrifugal submersible pump
Tsurumi LB-480A special handle design, powerful operation, compact shape, specially designed for pumping sand and small crystals, minimal debris to avoid clogging. The pump head is designed in sensitive mode, used to sense water flow for more durable operation. The pump is usually dropped into a pipe to suck the amount of water below an 8-inch diameter pipe, with a plastic outer shell design, helping the pump to be anti-oxidized well, and very light, making it easy for users to move, install and take up a small area when used.
In addition, the wastewater pump has 2 anti-dry floats, helping the pump to automatically stop when the pump reaches a certain water level. Efficient cooling motor allows the pump to operate continuously at low water levels and long dry spells. The discharge direction can be selected vertically or inclined to prevent folding or bending of the discharge pipe. Automatic electrical control. Stable electrode type sensor ON / OFF operation, prevents dry running, saves power consumption, and prolongs service life.
Tsurumi LB-480A 0.48kW centrifugal submersible pump
3. Application of Tsurumi LB-480A sewage submersible pump
- Centrifugal submersible pumps are widely used in the basements of high-rise buildings.
- Treatment of domestic wastewater in industrial parks and densely populated residential areas.
- Treatment of raw wastewater, wastewater and heavy industrial applications.
- There are rails for easy movement and maintenance of the machine.
