Specifications

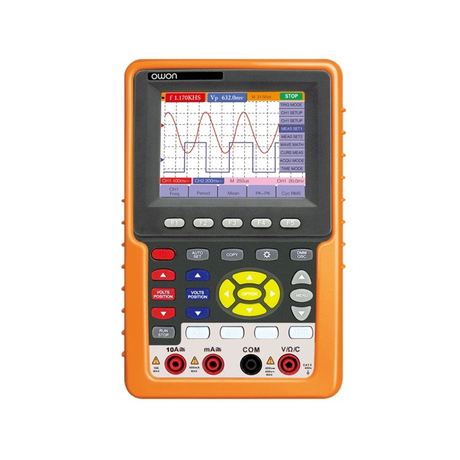

Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) is a graph display device - it not only graphs an electrical signal, but can also display other physical signals such as sound, light.... In most applications, the graph shows how the signal changes over time: The vertical axis (Y) represents voltage and the horizontal axis (X) represents time . The intensity or brightness of the display is sometimes called the Z axis.
With compact design, convenient for users. Handheld oscilloscopes are one of the essential devices for leading experts in research as well as production in the electrical and electronics industries.
Applications of oscilloscope:
- Signal recognition (Square pulse, sawtooth, sinusoidal, video signal, audio signal...)
- Clearly define the time and voltage values and the path of a signal.
- Calculate the frequency of an oscillating signal.
- Realize the "moving parts" of an electrical circuit are represented by signals.
- Indicates if a faulty component distorts the signal
- Find out whether the signal is direct current or alternating current
- Show what kind of signal is noise and, if so, how the noise changes over time....
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) Specifications
- Bandwidth: 60MHz
- Sample: 250MS/s
- Time sensitivity: 5ns/div~100s/div
- Rise time: ≤5.8ns
- Number of channels: 2
- Display: 3.7 inch TFT (640×480 pixels)
- Input impedance: 1MΩ±2%in, 15pF±5pF
- Signal division: 1X，10X，100X，1000X
- Maximum input voltage: 400V (PK-PK) DC + AC PK-PK
- Input: DC, AC, GND
- Data acquisition mode: Sample, Peak Detect and Average
- Resolution: 8 bits
- Voltage sensitivity: 5mV/div～5V/div
- Trigger type : Edge, Video, mixed
- Trigger mode: Auto, Normal, Single
- Trigger level : ±6
- Calculation: ＋, －, ×, ÷, FFT
- Storage: 4 waveforms
- Communication: USB Lion battery: 6 hours of use
- Power source: 100V-240V AC, 50/60Hz
- 2) Multimeter
- Capacitor : 51.2nF-100uF:±(3%±3 digits)
- Voltage: VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V, VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
- Current : DCA:40mA, 400mA:±(1.5%±1digit) 10A:±(3%±3digit), DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3 %±3digit)
- Impedance: 400Ω:±(1%±3digit), 40Ω
- Accessories: Test leads (1), power source, capacitor module, current, USB cable, CD, soft carrying case, user manual
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) is a graph display device - it not only graphs an electrical signal, but can also display other physical signals such as sound, light.... In most applications, the graph shows how the signal changes over time: The vertical axis (Y) represents voltage and the horizontal axis (X) represents time . The intensity or brightness of the display is sometimes called the Z axis.
With compact design, convenient for users. Handheld oscilloscopes are one of the essential devices for leading experts in research as well as production in the electrical and electronics industries.
Applications of oscilloscope:
- Signal recognition (Square pulse, sawtooth, sinusoidal, video signal, audio signal...)
- Clearly define the time and voltage values and the path of a signal.
- Calculate the frequency of an oscillating signal.
- Realize the "moving parts" of an electrical circuit are represented by signals.
- Indicates if a faulty component distorts the signal
- Find out whether the signal is direct current or alternating current
- Show what kind of signal is noise and, if so, how the noise changes over time....
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) Specifications
- Bandwidth: 60MHz
- Sample: 250MS/s
- Time sensitivity: 5ns/div~100s/div
- Rise time: ≤5.8ns
- Number of channels: 2
- Display: 3.7 inch TFT (640×480 pixels)
- Input impedance: 1MΩ±2%in, 15pF±5pF
- Signal division: 1X，10X，100X，1000X
- Maximum input voltage: 400V (PK-PK) DC + AC PK-PK
- Input: DC, AC, GND
- Data acquisition mode: Sample, Peak Detect and Average
- Resolution: 8 bits
- Voltage sensitivity: 5mV/div～5V/div
- Trigger type : Edge, Video, mixed
- Trigger mode: Auto, Normal, Single
- Trigger level : ±6
- Calculation: ＋, －, ×, ÷, FFT
- Storage: 4 waveforms
- Communication: USB Lion battery: 6 hours of use
- Power source: 100V-240V AC, 50/60Hz
- 2) Multimeter
- Capacitor : 51.2nF-100uF:±(3%±3 digits)
- Voltage: VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V, VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
- Current : DCA:40mA, 400mA:±(1.5%±1digit) 10A:±(3%±3digit), DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3 %±3digit)
- Impedance: 400Ω:±(1%±3digit), 40Ω
- Accessories: Test leads (1), power source, capacitor module, current, USB cable, CD, soft carrying case, user manual
Specifications
Specifications
Product description
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH)
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH)
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) is a graph display device - it not only graphs an electrical signal, but can also display other physical signals such as sound, light.... In most applications, the graph shows how the signal changes over time: The vertical axis (Y) represents voltage and the horizontal axis (X) represents time . The intensity or brightness of the display is sometimes called the Z axis.
With compact design, convenient for users. Handheld oscilloscopes are one of the essential devices for leading experts in research as well as production in the electrical and electronics industries.
Applications of oscilloscope:
- Signal recognition (Square pulse, sawtooth, sinusoidal, video signal, audio signal...)
- Clearly define the time and voltage values and the path of a signal.
- Calculate the frequency of an oscillating signal.
- Realize the "moving parts" of an electrical circuit are represented by signals.
- Indicates if a faulty component distorts the signal
- Find out whether the signal is direct current or alternating current
- Show what kind of signal is noise and, if so, how the noise changes over time....
Owon HDS2062M-N handheld oscilloscope (60MHz/2CH) Specifications
- Bandwidth: 60MHz
- Sample: 250MS/s
- Time sensitivity: 5ns/div~100s/div
- Rise time: ≤5.8ns
- Number of channels: 2
- Display: 3.7 inch TFT (640×480 pixels)
- Input impedance: 1MΩ±2%in, 15pF±5pF
- Signal division: 1X，10X，100X，1000X
- Maximum input voltage: 400V (PK-PK) DC + AC PK-PK
- Input: DC, AC, GND
- Data acquisition mode: Sample, Peak Detect and Average
- Resolution: 8 bits
- Voltage sensitivity: 5mV/div～5V/div
- Trigger type : Edge, Video, mixed
- Trigger mode: Auto, Normal, Single
- Trigger level : ±6
- Calculation: ＋, －, ×, ÷, FFT
- Storage: 4 waveforms
- Communication: USB Lion battery: 6 hours of use
- Power source: 100V-240V AC, 50/60Hz
- 2) Multimeter
- Capacitor : 51.2nF-100uF:±(3%±3 digits)
- Voltage: VDC:400mV,4V, 400V: ±(1±1digit) Max. input: DC 1000V, VAC:4V,40V,400V:±(1±3digit) Frequency:40Hz-400Hz, Max. input: AC 750V(virtual value)
- Current : DCA:40mA, 400mA:±(1.5%±1digit) 10A:±(3%±3digit), DAA:40mA±(1.5%±3digit) 400mA:±(2±1digit) 10A:±(3 %±3digit)
- Impedance: 400Ω:±(1%±3digit), 40Ω
- Accessories: Test leads (1), power source, capacitor module, current, USB cable, CD, soft carrying case, user manual
