1 phase voltage stabilizer 3kVA LiOA DRI- 3000 II

LiOA DRI- 3000 II single-phase voltage stabilizer 3kVA is a device that helps improve voltage and provide power to other electrical devices. The voltage stabilizer itself does not generate energy, so it is good for computers, laptops, sound systems, cameras, especially used to stabilize power sources for control cabinets.

Lioa is a big brand in the electricity industry in Vietnam. The company's main products are 1-phase and 3-phase voltage stabilizers, transformers, electric cables, civil electrical equipment... Among them, the most prominent product is automatic voltage stabilizers. Lioa has been established for decades in the voltage stabilizer industry in Vietnam.

1. Reasons to choose 3kVA LiOA DRI- 3000 II single-phase voltage stabilizer

LiOA DRI-3000 II single-phase voltage stabilizer 3kVA has a compact size, suitable for families, does not take up much space, has an industrial design and is very easy to use.

LiOA voltage stabilizer not only helps increase the life of electrical appliances but also protects you and your family from electrical incidents.

The product has a capacity of 3kVA and has an input voltage of 90V - 250V, output voltage of 220V, 110V and 100V and will be suitable for all domestic and imported electrical equipment.

The voltage stabilizer under the LiOA brand must be very familiar to Vietnamese consumers, the product quality has been appraised over more than 20 years of existence and development.

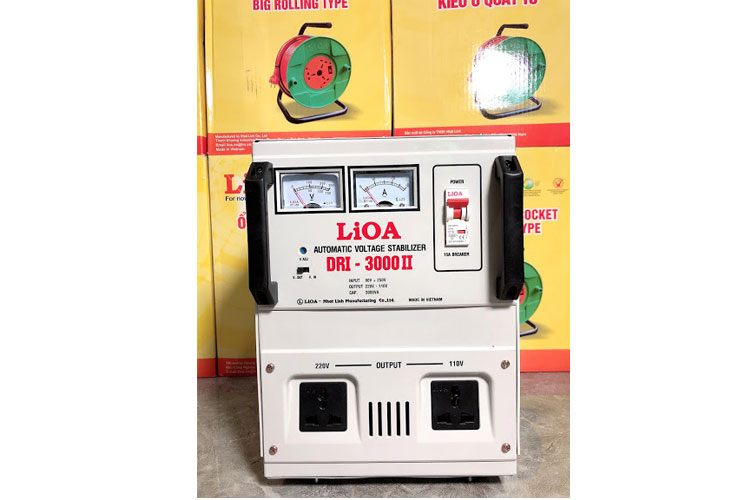

Single phase voltage stabilizer 3kVA LiOA DRI- 3000 II

2. Characteristics of 3kVA LiOA DRI- 3000 II single-phase voltage stabilizer

3kVA single-phase voltage stabilizer LiOA DRI- 3000 II has a milky white design, compact design with dimensions of 305 x 225 x 305 mm, light weight and easy to move. Metal shell for high durability and easy cleaning. The product dissipates heat effectively thanks to the design of more heat dissipation slots on the body, helping the voltage stabilizer operate continuously.

LIOA voltage stabilizer is Lioa's 2nd generation voltage stabilizer product. The connection wire and slide transformer are made from 100% pure copper and are designed with 3 times the safety due to 3-in-1 protection: overvoltage protection. , overload protection, proactive power switching.

With the advantage of smooth running and low power consumption with a capacity of 3kVA, the product helps electrical equipment run at full capacity, thus promoting the best usability, ensuring high durability for the device and saving energy.

3kVA LiOA single-phase voltage stabilizer Use servo motor principle or Role principle to operate. The power supply voltage is always improved thanks to the Lioa voltage stabilizer that keeps the power stable when the input voltage changes within the allowable range.

The operating capacity of the voltage stabilizer is always proportional to the voltage drop of the input power source. Therefore, when the input power source is too weak, the output power of the voltage stabilizer drops sharply. When the input power source is high, the voltage stabilizer also increases and will automatically adjust the voltage level when necessary if the power source is too high.

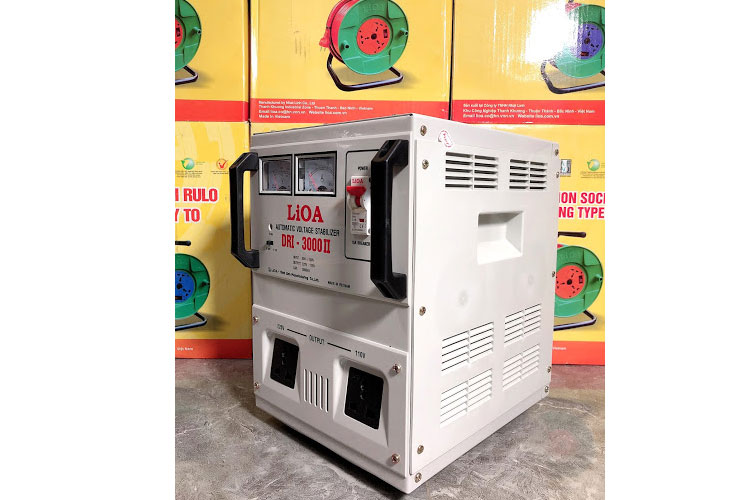

The product is designed with more heat dissipation slots on the body, helping the voltage stabilizer operate continuously

3. What electrical equipment is the 3kVA LiOA DRI- 3000 II single-phase voltage stabilizer suitable for?

3kVA single-phase voltage stabilizer LiOA DRI- 3000 II has a capacity of 3kVA with an input voltage range of 90V-250V, often used in weak electricity areas to help stabilize the power source and is well used for consumer electronic devices. office electrical machinery and equipment, medical electrical equipment.

In addition, voltage stabilizers are used to supply electricity to household electrical appliances or industrial machines in factories and enterprises.

Specifications:

• Brand: Lioa
• Origin: Vietnam
• Weight: 14.4 kg
• Weight: 305 x 225 x 305 mm
• Color: Milk white
• Capacity: 3KVA
• Input voltage: 90V- 250V
• Output voltage: 110V, 220V
• Frequency: 49 - 62 Hz
• Response time with 10% input voltage change: 0.4s ÷ 1s (500VA - 10000VA), 0.8s ÷ 2s (15000VA - 50000VA)
• Ambient temperature: -5 degrees Celsius - 40 degrees Celsius
• Control principle: 1-way Servo motor
• Insulation: greater than 3MΩ at 500V DC voltage
• Electrical durability: Tested at 2000V voltage within 1 minute

 4. Note when using voltage stabilizer

When installing the machine, you need to choose a large enough input and output wire to ensure the machine works at full capacity, does not overheat the wire, and does not cause voltage drop on the wire.

Tightly attach the ends of the wires to the terminals, ensuring good contact, avoiding movement and heat generation due to contact which can lead to damage or fire to the machine, burnt wires, causing a fire...

Place the machine in a dry, cool, easy-to-observe place, ensuring heat dissipation conditions, convenient for use and safe for children.

To ensure safety when using, you should connect the ground wire to the machine, do not move the machine while it is powered, and avoid letting water or other liquids fall into the machine.

Voltage stabilizers only improve voltage but do not produce energy themselves, so when the grid voltage drops lower, the voltage stabilizer's capacity also decreases. Then it is necessary to reduce the load to avoid overloading the machine.
